Nucleo G474RE

Cortex-M4F (STM32G474) · Arm Cortex-M · 170 MHz

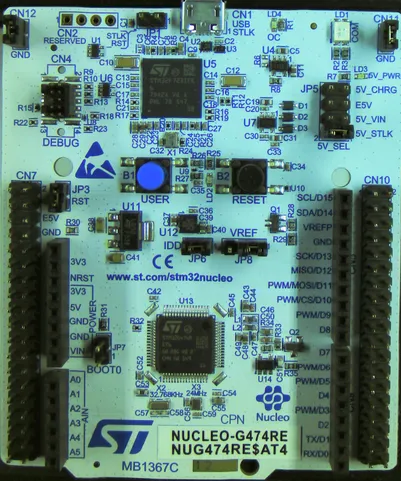

Board: Nucleo G474RE
Core: Cortex-M4F (STM32G474)
Clock: 170 MHz
float / double: 32-bit / 64-bit

uint8_t add

11.7 M/s

rank 8 of 16 · 85.2 ns

uint32_t add

12.6 M/s

rank 5 of 16 · 79.3 ns

uint32_t divide

8.73 M/s

rank 5 of 16 · 115 ns

float multiply

11.7 M/s

rank 5 of 16 · 85.2 ns

Cycles per uint32 add

13.5 cycles

rank 7 of 16 — the clock-independent number

What every operation costs

Every numeric type, all five operations, as clock cycles per operation: the shape of this part's cost independent of its clock. The bars are the story of where it falls off a cliff — divide, 64-bit, floating point.

The same cells as nanoseconds per operation, median of three samples. Darker is slower; the small number is this board's rank in the fleet for that cell (1 = fastest of 16).

	Add	Subtract	Multiply	Divide	Modulo
uint8_t	85.2 ns #8 of 16	85.2 ns #8 of 16	85.1 ns #7 of 16	112 ns #6 of 16	123 ns #5 of 16
uint16_t	85.1 ns #5 of 16	85.1 ns #5 of 16	85.2 ns #5 of 16	122 ns #6 of 16	132 ns #5 of 16
uint32_t	79.3 ns #5 of 16	79.3 ns #4 of 16	79.3 ns #3 of 16	115 ns #5 of 16	120 ns #4 of 16
uint64_t	132 ns #7 of 14	132 ns #7 of 14	150 ns #5 of 14	863 ns #5 of 14	863 ns #5 of 14
float	85.1 ns #5 of 16	85.1 ns #5 of 16	85.2 ns #5 of 16	156 ns #3 of 16	747 ns #6 of 16
double	634 ns #7 of 16	634 ns #6 of 16	450 ns #4 of 16	599 ns #4 of 16	1.45 µs #8 of 16
