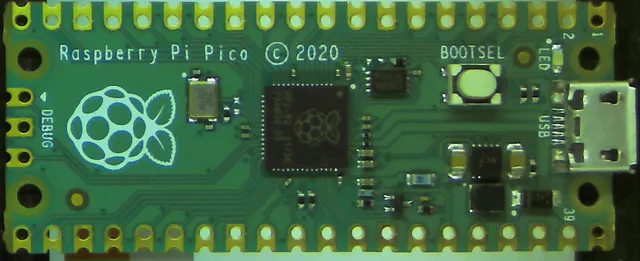

Pi Pico

Cortex-M0+ (RP2040) · Arm Cortex-M · 200 MHz

Board: Pi Pico
Core: Cortex-M0+ (RP2040)
Clock: 200 MHz
float / double: 32-bit / 64-bit

uint8_t add

13.5 M/s

rank 3 of 16 · 73.8 ns

uint32_t add

11.3 M/s

rank 8 of 16 · 88.9 ns

uint32_t divide

5.14 M/s

rank 9 of 16 · 194 ns

float multiply

2.45 M/s

rank 11 of 16 · 408 ns

Cycles per uint32 add

17.8 cycles

rank 8 of 16 — the clock-independent number

What every operation costs

Every numeric type, all five operations, as clock cycles per operation: the shape of this part's cost independent of its clock. The bars are the story of where it falls off a cliff — divide, 64-bit, floating point.

The same cells as nanoseconds per operation, median of three samples. Darker is slower; the small number is this board's rank in the fleet for that cell (1 = fastest of 16).

	Add	Subtract	Multiply	Divide	Modulo
uint8_t	73.8 ns #3 of 16	68.8 ns #3 of 16	78.8 ns #5 of 16	209 ns #10 of 16	209 ns #10 of 16
uint16_t	93.9 ns #8 of 16	93.9 ns #8 of 16	88.9 ns #7 of 16	210 ns #10 of 16	210 ns #10 of 16
uint32_t	88.9 ns #8 of 16	88.9 ns #8 of 16	83.8 ns #7 of 16	194 ns #9 of 16	194 ns #9 of 16
uint64_t	155 ns #9 of 14	165 ns #10 of 14	320 ns #10 of 14	498 ns #2 of 14	498 ns #2 of 14
float	463 ns #11 of 16	499 ns #11 of 16	408 ns #11 of 16	498 ns #8 of 16	878 ns #8 of 16
double	625 ns #6 of 16	675 ns #7 of 16	982 ns #9 of 16	1.08 µs #6 of 16	1.36 µs #6 of 16
