PIC16F17146

PIC16F (PIC16F17146) · PIC / dsPIC · 32 MHz

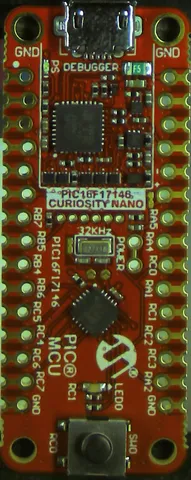

Board: PIC16F17146 Curiosity Nano
Core: PIC16F (PIC16F17146)
Clock: 32 MHz
float / double: 32-bit / 32-bit

uint8_t add

298 k/s

rank 16 of 16 · 3.36 µs

uint32_t add

105 k/s

rank 16 of 16 · 9.48 µs

uint32_t divide

9.23 k/s

rank 16 of 16 · 108 µs

float multiply

5.95 k/s

rank 15 of 16 · 168 µs

Cycles per uint32 add

303 cycles

rank 16 of 16 — the clock-independent number

What every operation costs

Every numeric type, all five operations, as clock cycles per operation: the shape of this part's cost independent of its clock. The bars are the story of where it falls off a cliff — divide, 64-bit, floating point.

The same cells as nanoseconds per operation, median of three samples. Darker is slower; the small number is this board's rank in the fleet for that cell (1 = fastest of 16).

	Add	Subtract	Multiply	Divide	Modulo
uint8_t	3.36 µs #16 of 16	3.61 µs #16 of 16	15.4 µs #16 of 16	16.1 µs #16 of 16	49.7 µs #16 of 16
uint16_t	4.11 µs #16 of 16	4.11 µs #16 of 16	39.4 µs #16 of 16	42.4 µs #16 of 16	36.6 µs #16 of 16
uint32_t	9.48 µs #16 of 16	11.2 µs #16 of 16	101 µs #16 of 16	108 µs #16 of 16	92.5 µs #16 of 16
uint64_t	not measured	not measured	not measured	not measured	not measured
float	40.2 µs #15 of 16	53.7 µs #15 of 16	168 µs #15 of 16	181 µs #16 of 16	136 µs #16 of 16
double	40.2 µs #15 of 16	53.7 µs #15 of 16	168 µs #15 of 16	181 µs #15 of 16	136 µs #16 of 16
